This torch is versatile and suitable for all forms of TIG welding, ideal for multi-function welders which have TIG lift capabilities, high-frequency TIG welders utilising the trigger switch, and scratch TIG on MMA stick welders.

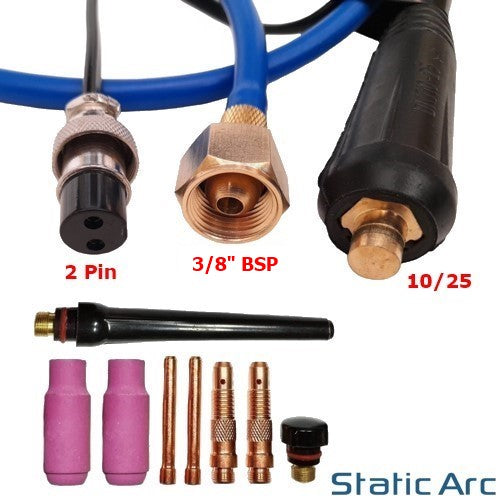

The gas hose is attached directly to your gas regulator and comes with a 3/8" BSP fitting which is a common fit for most regulators.
The 2 pin plug is for operating the trigger switch for HF (when using lift or scratch this isn't needed).

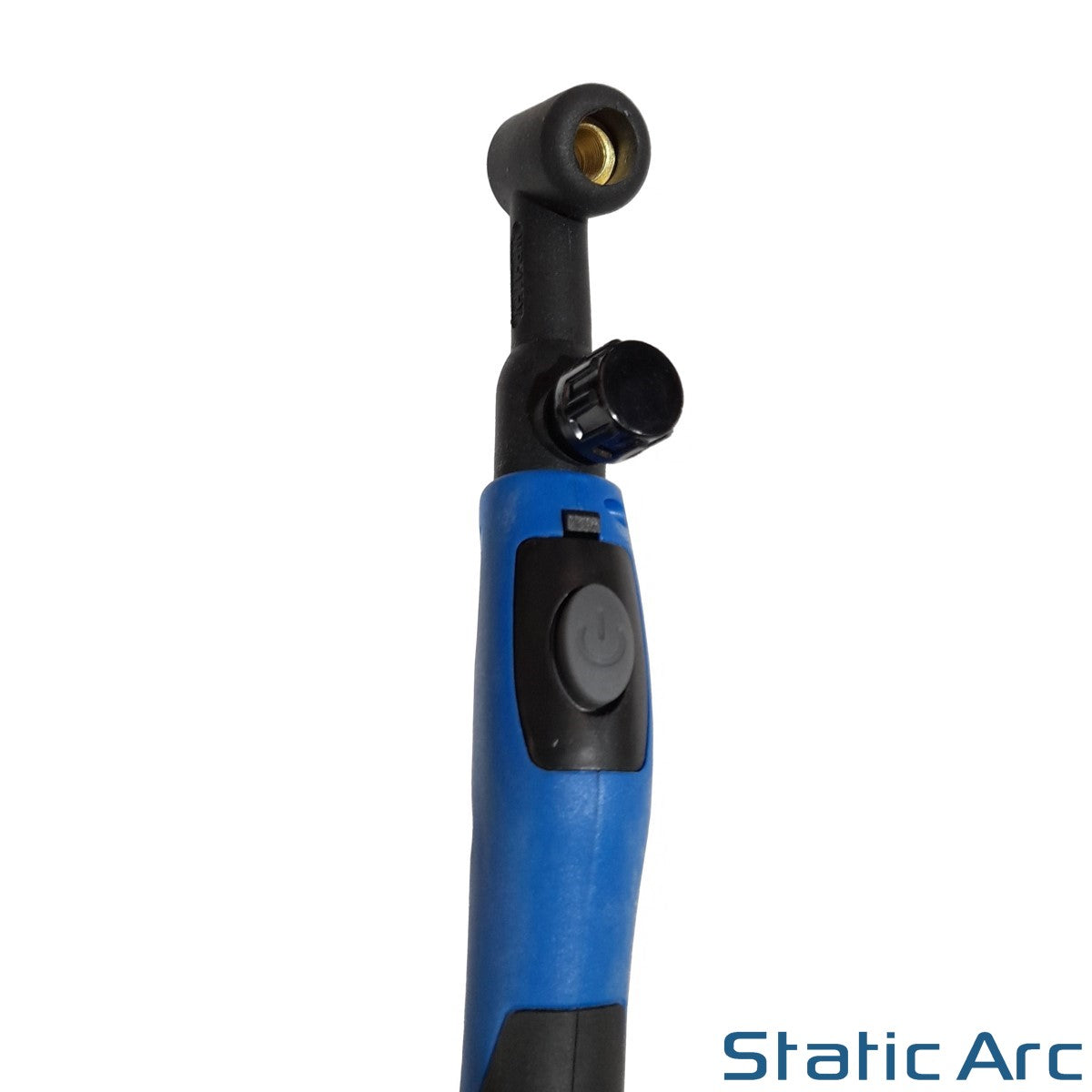

Has a flexible head to aid positional welding and working in tight spaces.
SPECS
- Torch model: WP17FV (Flex head/Valve)
- Power plug: 10/25
- Gas connector: 3/8" BSP
- Gas hose OD: 8mm
- Gas valve on neck
- Flexible torch neck
- Air cooled cable
- Current rating: 150A
- Cable length: 4m
- Additional gas hose length: 30cm

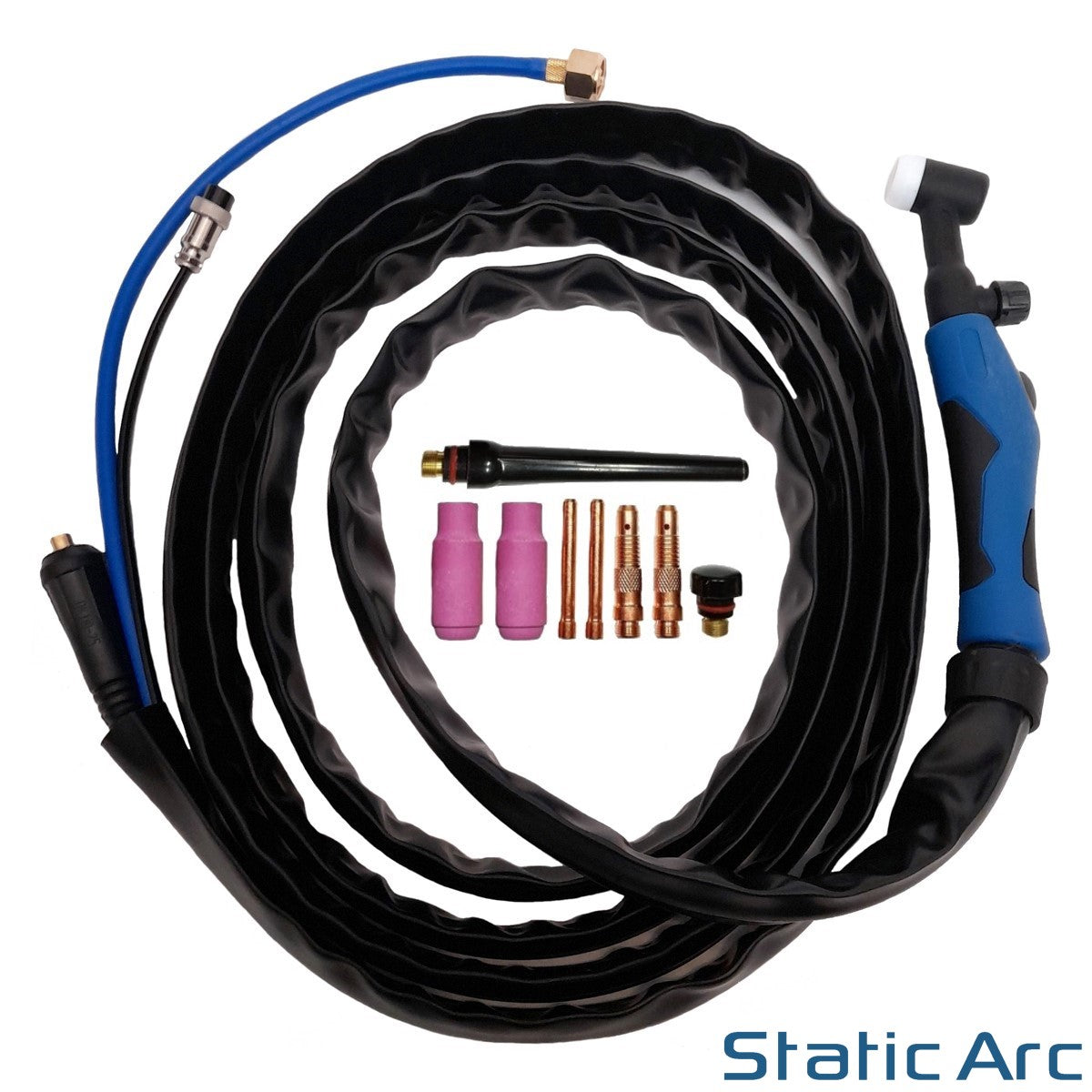

PACKAGE
TIG torch
2x Ceramic cup #5 and #6
2x Collet 1.6mm and 2.4mm
2x Collet body 1.6mm and 2.4mm
1x Long back cap
1x Short back cap
