FEATURES
- 3in1 multi-function MIG, MMA & TIG lift operation
- Suitable for welding mild steel, stainless steel and cast iron
- Adjustable power setting and wire feed speed (Synergic wire speed control only activates when you weld)
- Synergic control for improved handling and performance; Set amps (A) dial for power level, adjust volts (V) and wire speed dials for minor refinement if required.
- Digital display to read and set current/voltage
- Gas and gasless (flux core) dual MIG operation
- Non live MIG torch (press trigger to arc) with inbuilt gas valve
- Suitable for loading up to 5kg MIG wire reel
- Hot start and anti-stick enabled MMA
- Auto protection from over-heat and over-current
- Turbo fan cooling system
- Hand removable cables
- Lightweight (4kg) and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 13A mains plug
- 1 YEAR WARRANTY
- FREE REEL OF FLUX CORE WIRE
SPECS
- Operating voltage: AC 230V, 50Hz
- Power rating: 2.8kW
- MIG/MMA output: 30-140A (15-20V)
- TIG output: 20-140A
- Duty cycle: 100% @ 110A, 60% @ 140A
- MIG wire size to fit: 0.6-1.0mm (Fitted guide wheel 0.8/1.0mm knurled 25mm - we sell other sizes in our store)
- MIG reel size to fit: Up to 5kg (Will fit smaller 1kg hobby reels)
- MMA electrode size to fit: 1.6-3.2mm
- Weld thickness: Up to 4mm
- Dinse plug size: 10-25
- Gas inlet: 8mm barb to fit 8mm ID hose
- Standards: CE, IP21S, F class insulation
- Machine weight: 4kg
- Machine size: 350 x 170 x 280mm
PACKAGE INCLUDES

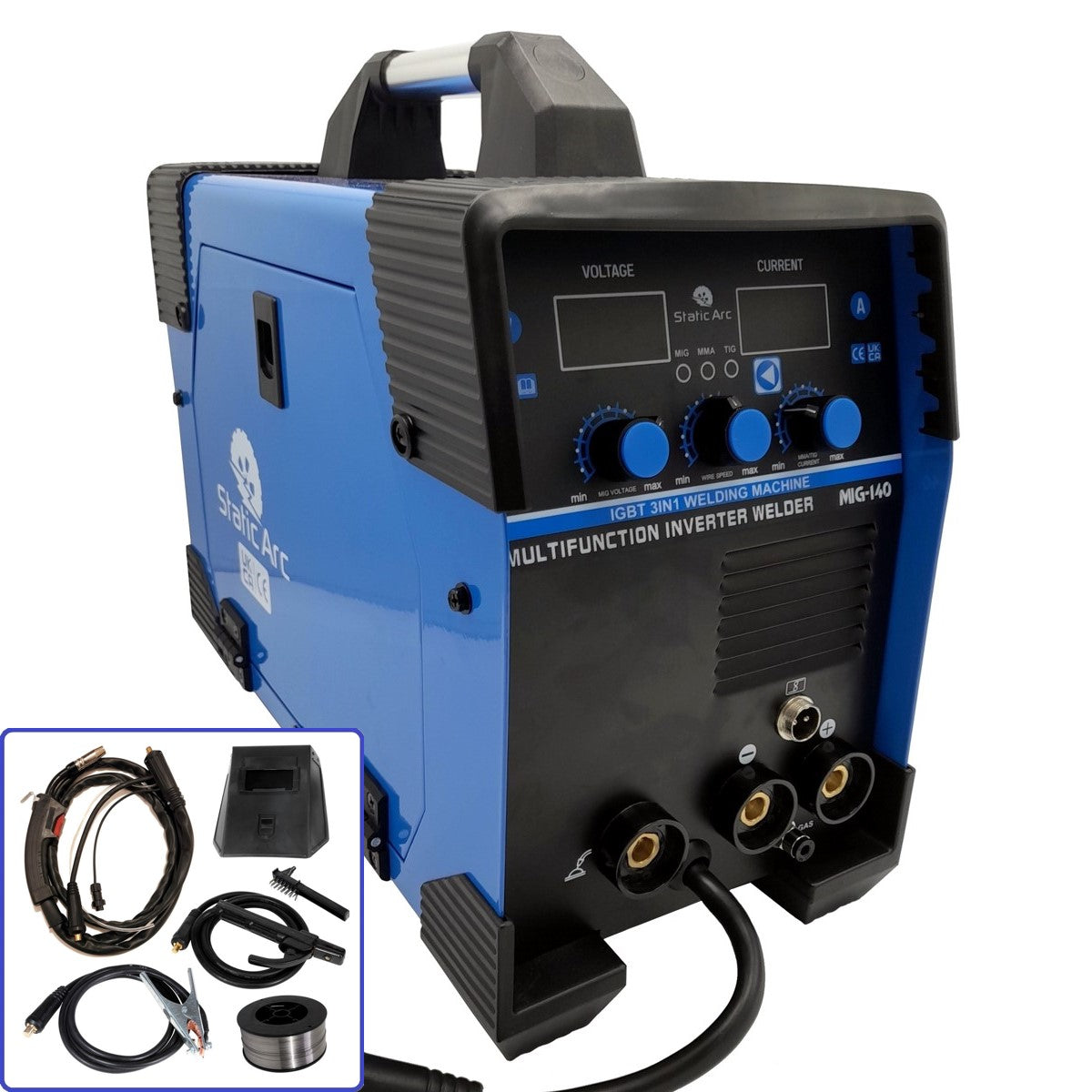

- MIG140 welder
- MIG welding torch, 2.5m
- MMA electrode holder, 2m
- Earth clamp, 2m
- 0.8mm flux core wire reel, 0.5kg
- Gas hose, 2m
- 2x Hose clips
- 4x Spare MIG tips
- Face mask
- Wire brush/hammer
- User manual
