FEATURES
- 2in1 multi-function TIG and MMA operation
- Suitable for welding mild steel, stainless steel and cast iron
- Adjustable power settings and digital display to read and set current
- Pulse TIG weld function, creates a fluctuating output which reduces the build up of heat whilst still giving a solid fusion weld, ideal for work on thin metal to reduce deformation.
- Cold TIG weld function for low heat output, similar to spot welding with fast on/off operation, ideal for work on very thin metal to reduce heat build up and deformation. Can also select single or continuous arc output, and adjust the weld time and interval time.
- 2T/4T trigger operation
- Adjustable pre/post gas flow and parameters at all welding stages (set current and time)
- 5 Channel save function, saves weld parameters for future us, simplifying the setup
- Toggle VRD mode for MMA, reduces open circuit voltage to safe level
- High frequency arc-start TIG welding
- Hot start and anti-stick enabled MMA welding
- Auto protection from over-heat and over-current
- Lightweight (7kg) and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 3 pin mains plug
- 1 Year Warranty
SPECS
- Operating voltage: AC 230V, 50Hz
- Power rating: 4kW
- TIG output: 10-200A
- MMA output: 30-180A
- Duty cycle: 60% @200A
- Suitable MMA electrode size: 1.6-3.2mm
- Suitable TIG rod size: 1.0-3.2mm
- Weldable thickness: Up to 6mm
- DKJ power plug size: 10-25
- Torch consumables: WP26 (WP17)
- Gas inlet: 8mm hose tail to fit 8mm ID hose
- Standards: CE, UKCA, IP21S protection, F class insulation
- Machine weight: 7kg
- Machine size: 400 x 160 x 300mm
PACKAGE
- TIG200P+C welder

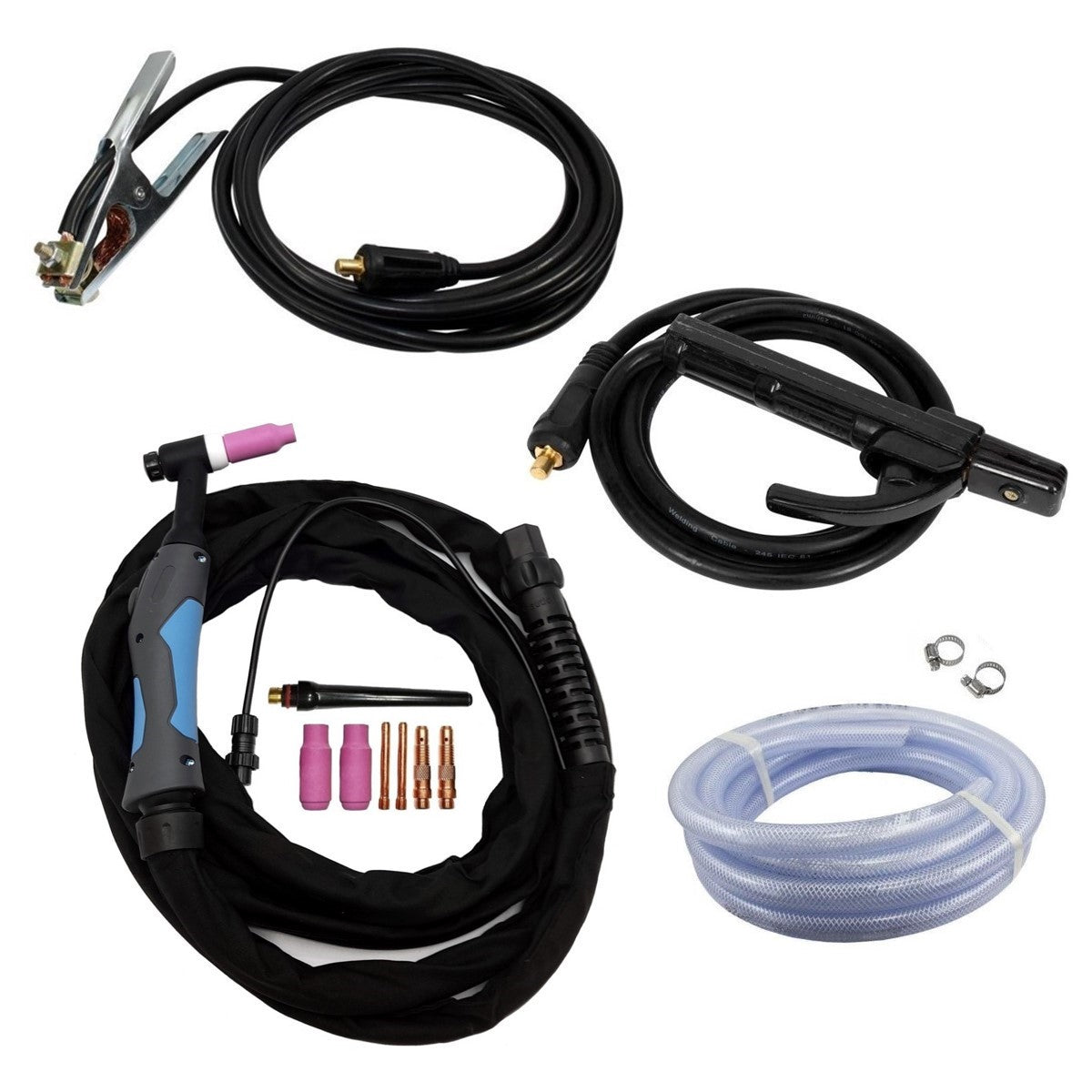

- WP26 TIG welding torch (4m)
- MMA electrode holder (2m)
- Earth clamp (2m)
- Gas hose (2m) + Hose clips
- TIG consumables: 1x long back cap, 1x short back cap, 3x ceramic cups #4/5/6, 2x collets 1.6/2.4mm, 2x collet body 1.6/2.4mm
- User manual
