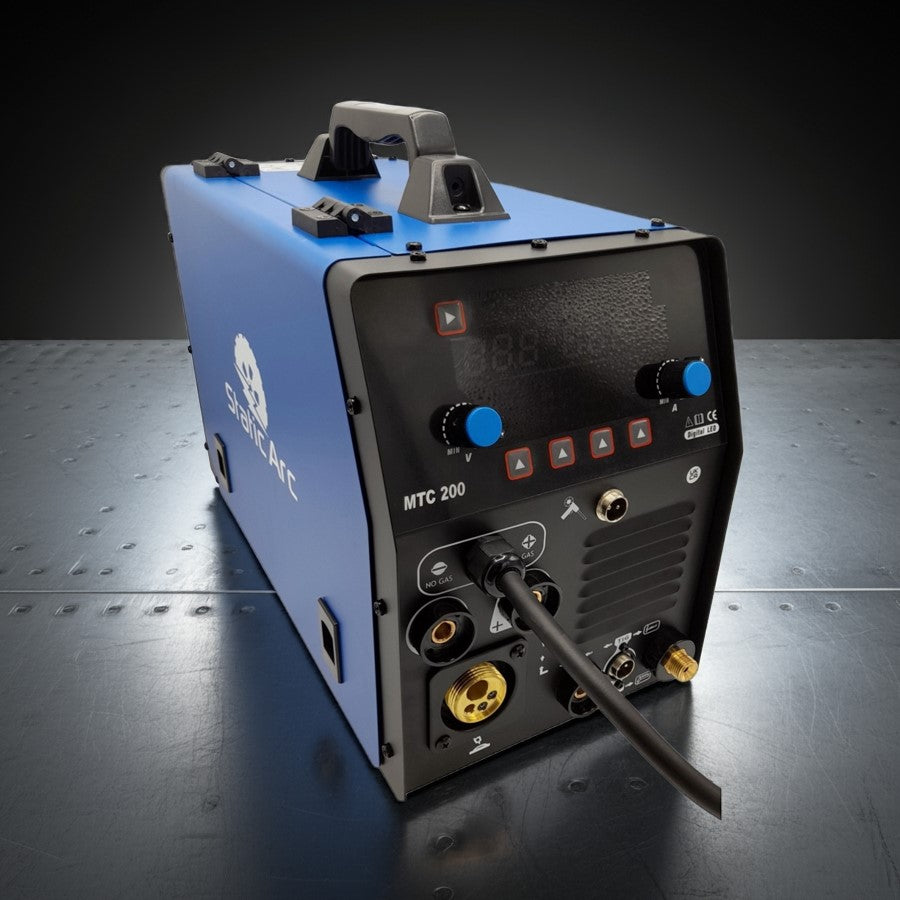

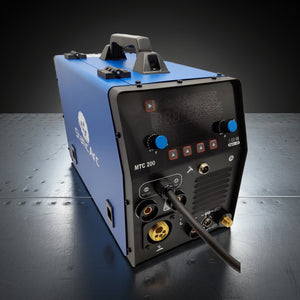

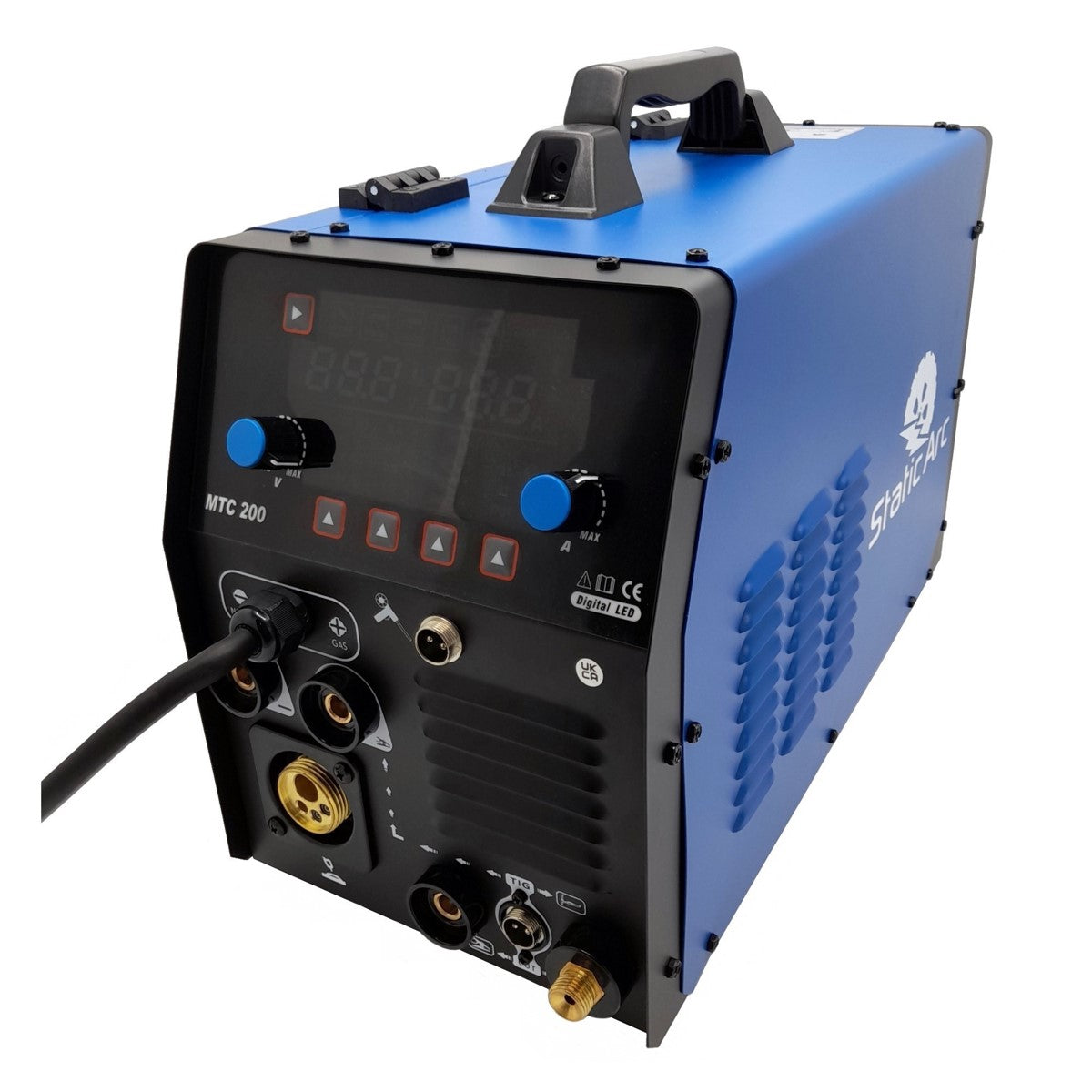

- 5in1 multi-function MIG (gas and gasless), MMA, HF TIG and Plasma Cutter
- Suitable for welding mild steel, stainless steel, cast iron and aluminium (MIG)

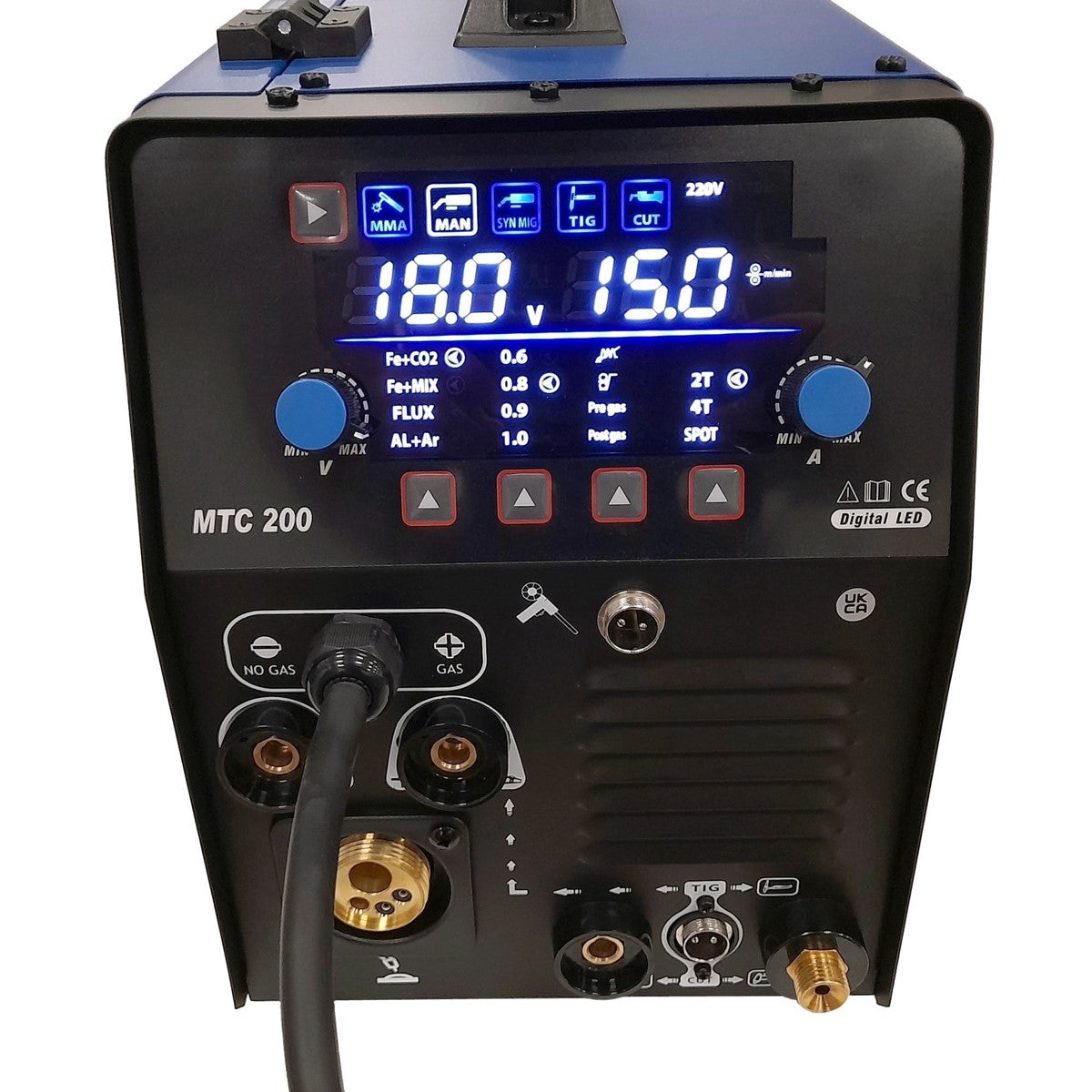

- Large digital display control panel for individual setting parameters
- Auto protection from over-heat and over-current
- Lightweight (11kg) and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 3 pin mains plug
- 1 Year Warranty
MIG WELDING (OUTPUT 30-200A)
- Main parameters: Voltage setting, wire speed, choose gas type (CO2 or mix), or using flux core (gasless) wire, or aluminium welding, choose wire size (0.6/0.8/0.9/1.0).
- Synergic function, auto sets the weld parameters to simplify the setup, just set the current and the welder will work out the rest (voltage/wire speed). If required further you can fine adjust the voltage.
- Adjustable inductance, helps to improve weld quality with stable arc and reduced spatter
- Adjustable start-up wire speed, runs an initial low speed to avoid stubbing before welding
- Adjustable pre/post gas flow (0-2s) and 2T/4T trigger operation
- Spot welding function (0-3s), ideal for joining thin sheets of metal with speed and efficiency
- Spool gun operation (2 pin socket, 24V), ideal for welding aluminium. (Spool gun not included but we sell, see link at bottom)
- Standard Euro fit MIG torch, trigger operated, durable and reliable

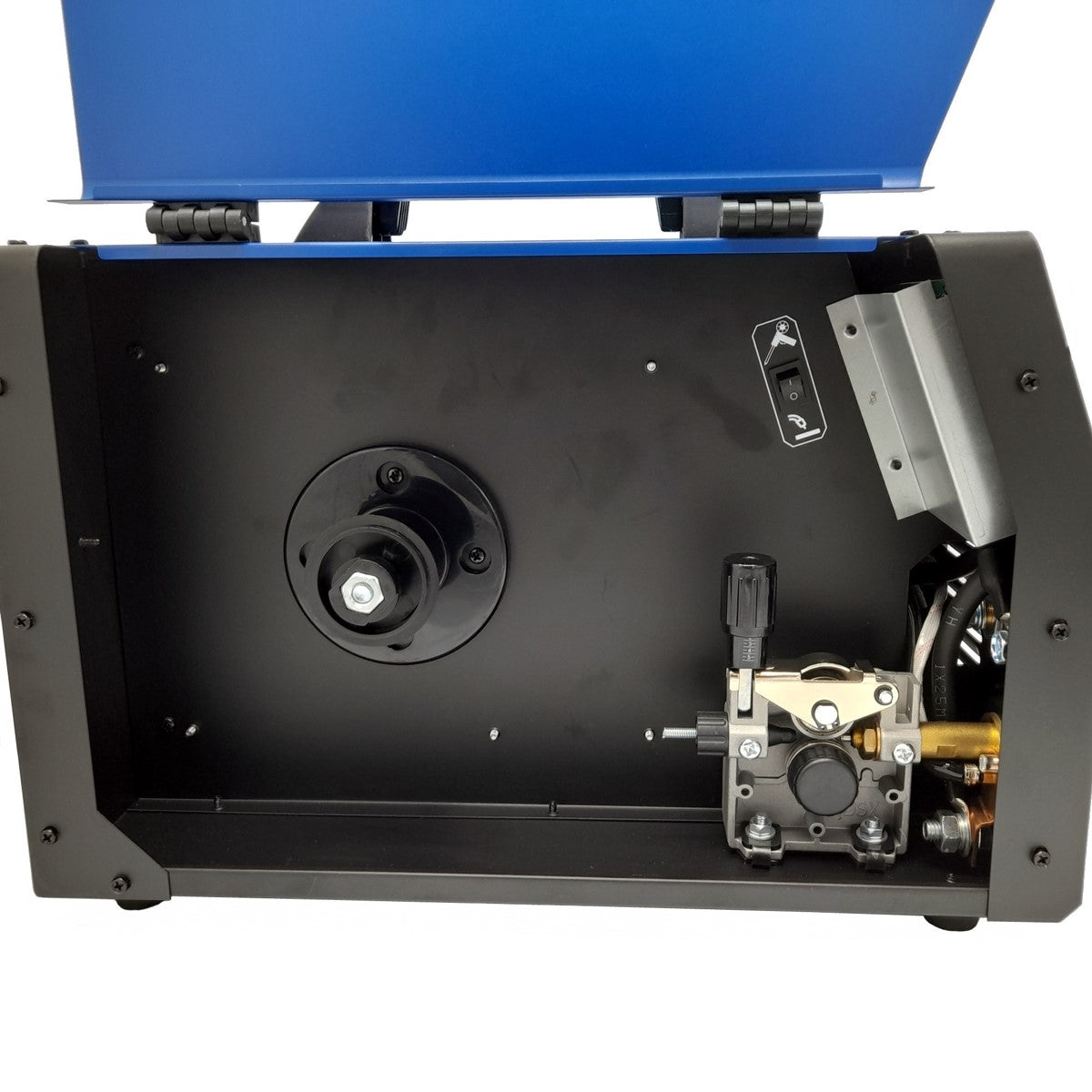

- Metal wire feed housing, durable and reliable
- Gas and gasless (flux core) dual MIG operation, ideal for welding outdoors
- Suitable for loading 5kg MIG wire reels, and below (1kg etc.)
MMA WELDING (OUTPUT 25-180A)
- Hot start and anti-stick enabled MMA
- Kit includes electrode holder
TIG WELDING (OUTPUT 15-200A)
- High frequency (HF) TIG welding with WP26 trigger operated torch (included)
- Adjustable pre/post gas flow (0-5s)
(Tungsten and filler rods not included but we sell in our store)
PLASMA CUTTER (OUTPUT 20-40A)
- PT31 plasma cutting torch, contact to arc
- Suitable for cutting all forms of metal, steel, aluminium and copper
- Adjustable pre/post gas flow (0-5s)
- Smooth cutting surface and higher cutting speed compare with standard flame cutters and angle grinders

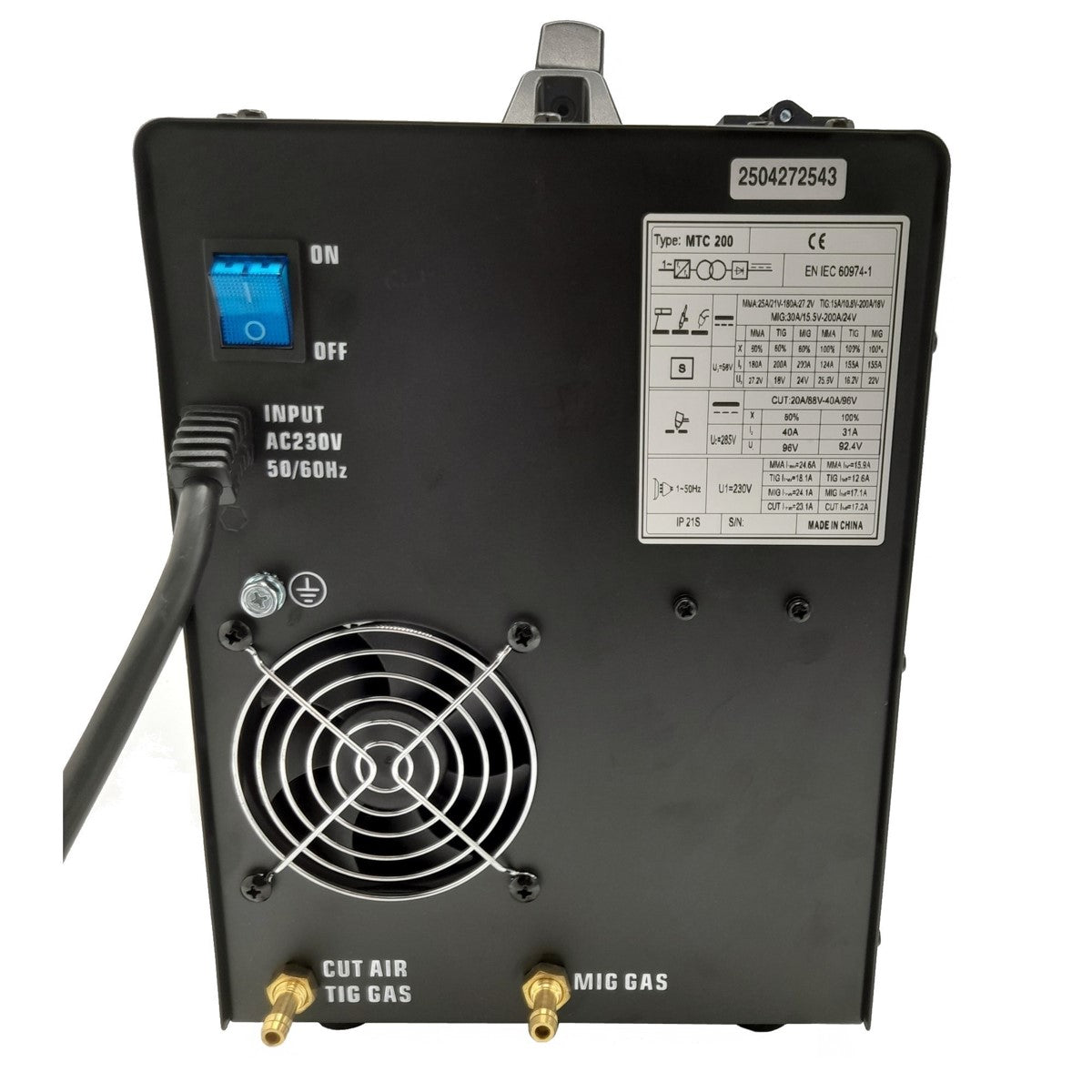

SPECS
- Operating voltage: AC 230V, 50Hz
- Power rating: 3.5kW
- Output: MIG 30-200A (15-24V), MMA 25-180A, TIG 15-200A, CUT 20-40A
- Duty cycle: 60% @ 200A
- Suitable MIG wire size: 0.6-1.0mm (Fitted wire feed roller 0.6/0.8mm V 30mm - we sell other sizes in our store)
- Suitable MIG reel size: 5kg and below
- Suitable MMA electrode size: 1.6-4mm
- Weldable thickness: Up to 6mm
- Plasma cut thickness: Up to 12mm
- DKJ power plug size: 10-25

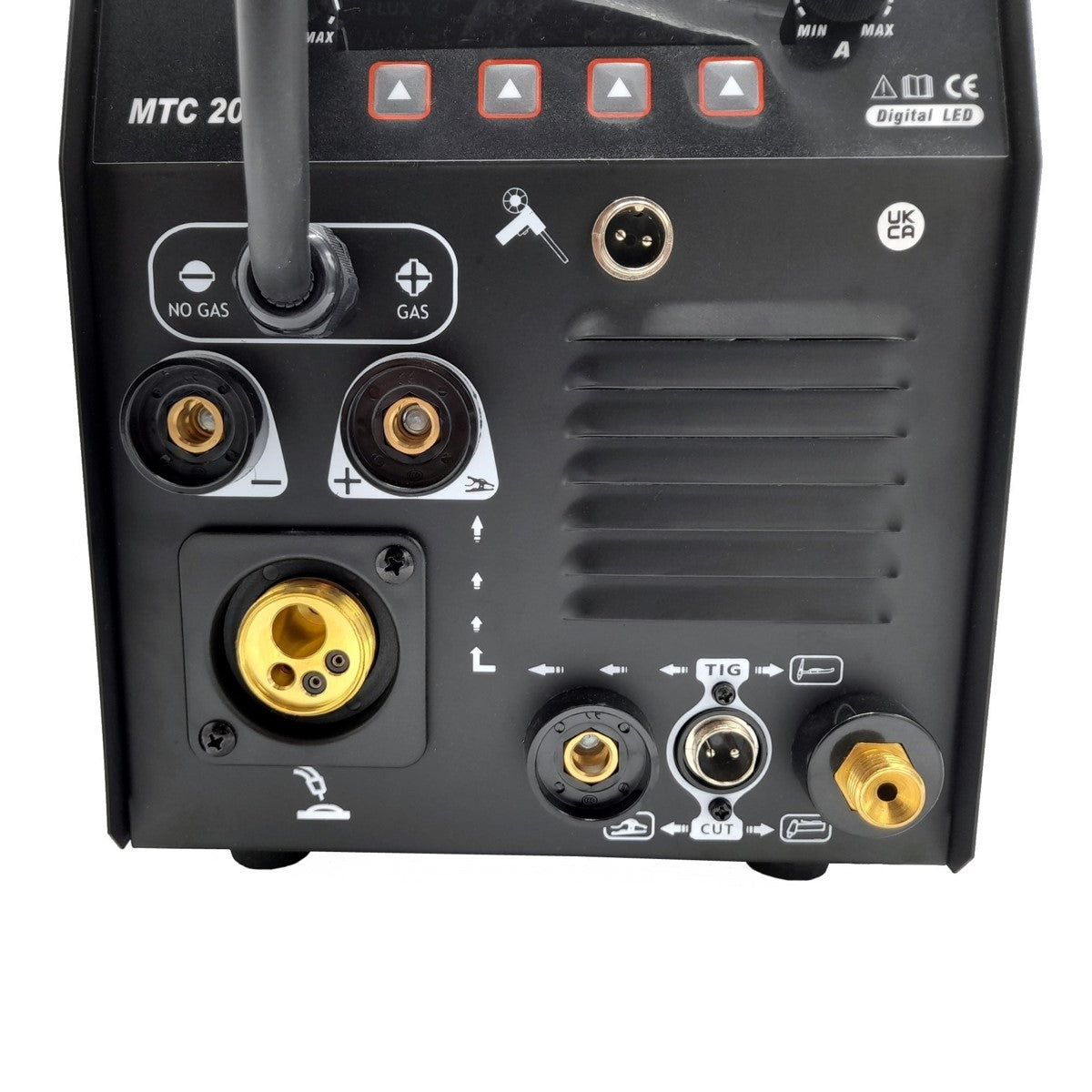

- Torch consumables: MIG MB15, TIG WP26, CUT PT31
- Spool gun socket: 2-pin GX16 (DC24V)
- Gas/Air inlet: 8mm hose tail to fit 8mm ID hose
- Standards: CE, UKCA, IP21S protection, F class insulation
- Machine weight: 11kg
- Machine size: 460 x 220 x 340mm

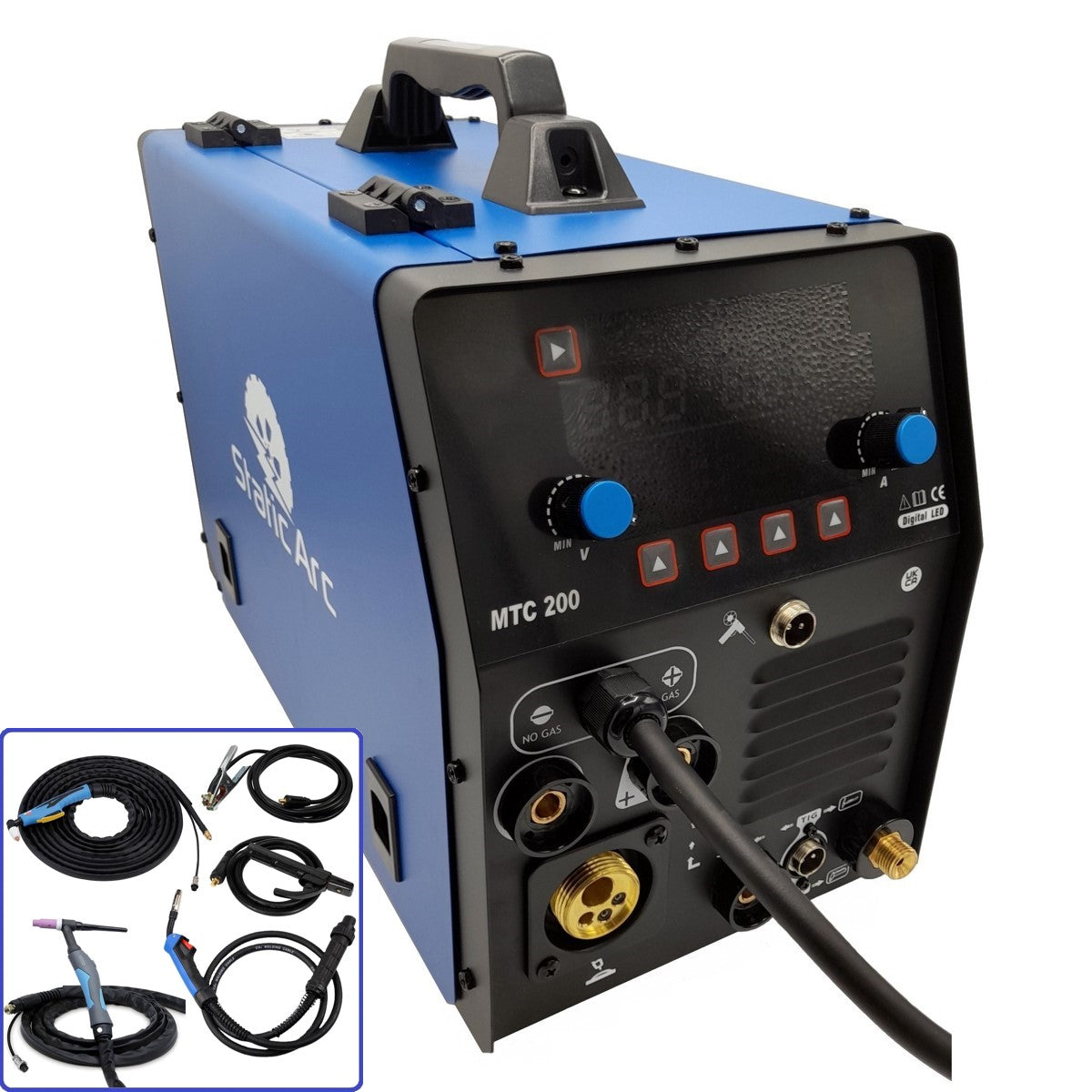

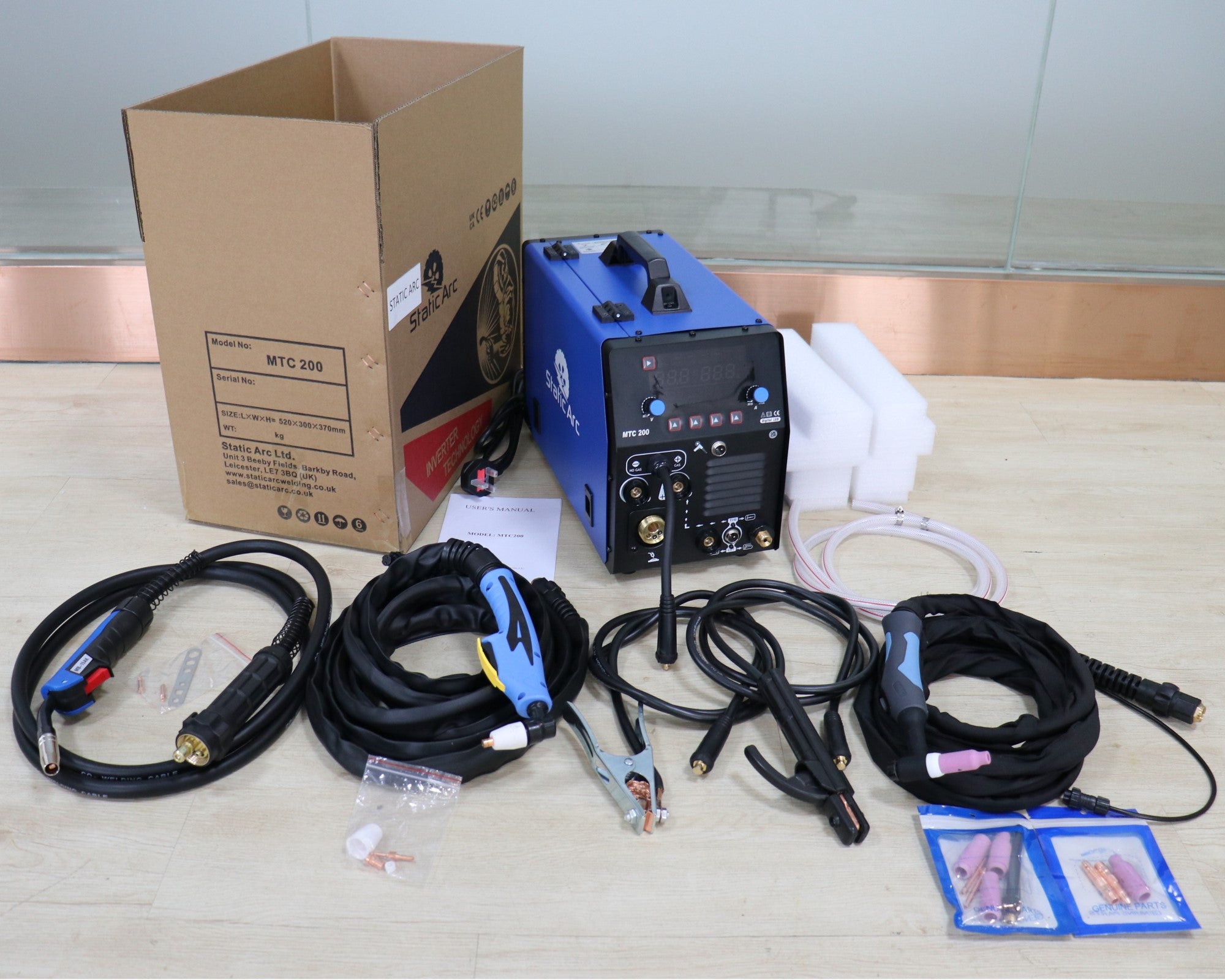

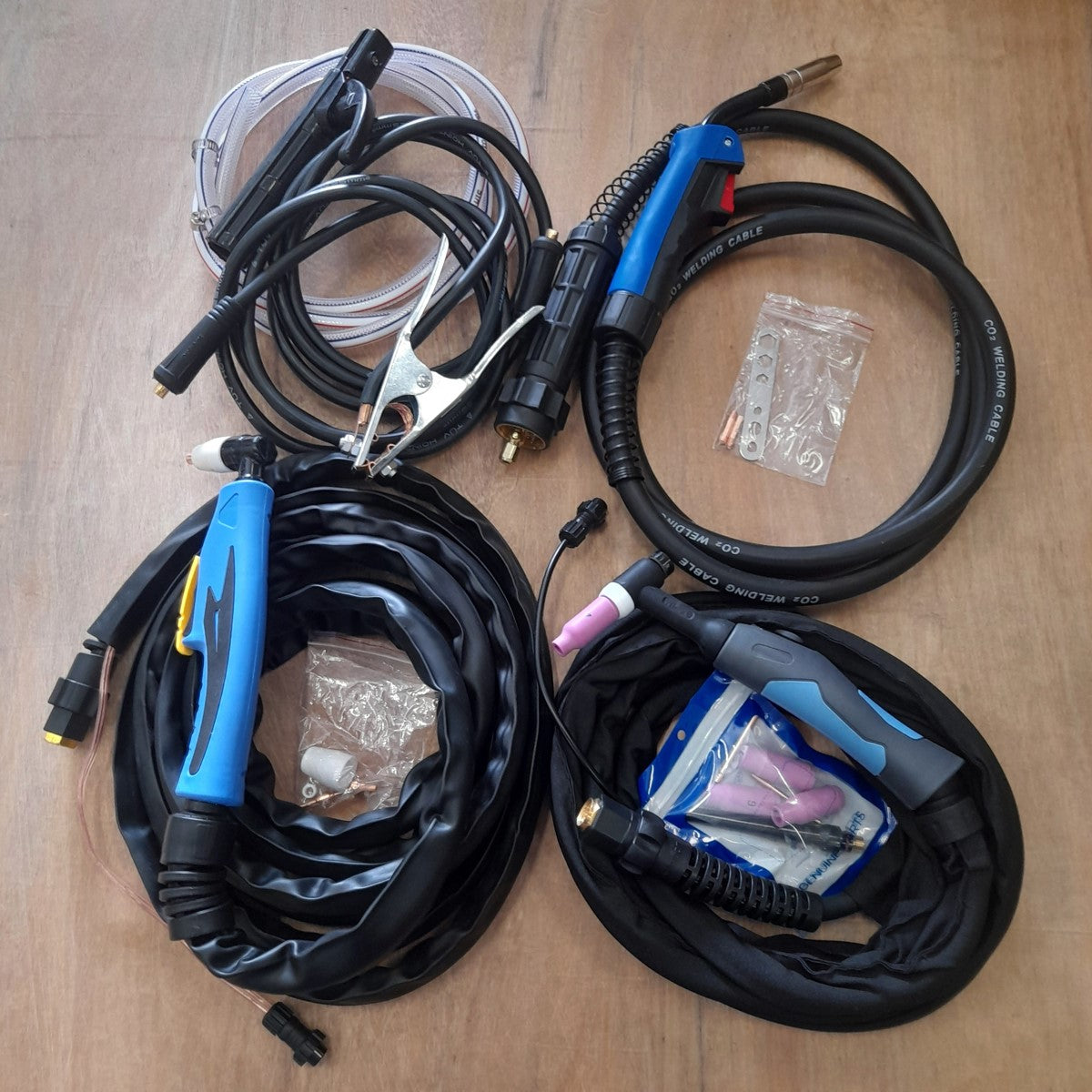

PACKAGE
- MTC200 machine
- 15AK MIG welding torch (3m)
- MMA electrode holder (2m)
- Earth clamp (2m)
- WP26 TIG welding torch (4m)
- PT31 plasma cutting torch (5m)
- Gas hose (2m) + Hose clips
- 2x 0.8mm MIG tips
- TIG consumables: 1x long back cap, 1x short back cap, 3x ceramic cups #4/5/6, 2x collets 1.6/2.4mm, 2x collet body 1.6/2.4mm
- 1x Full set of PT31 cut consumables
- User manual
