FEATURES
- 4in1 multi-function MIG (gas and gasless), MMA & TIG lift operation
- Suitable for welding mild steel, stainless steel, cast iron and aluminium (MIG)

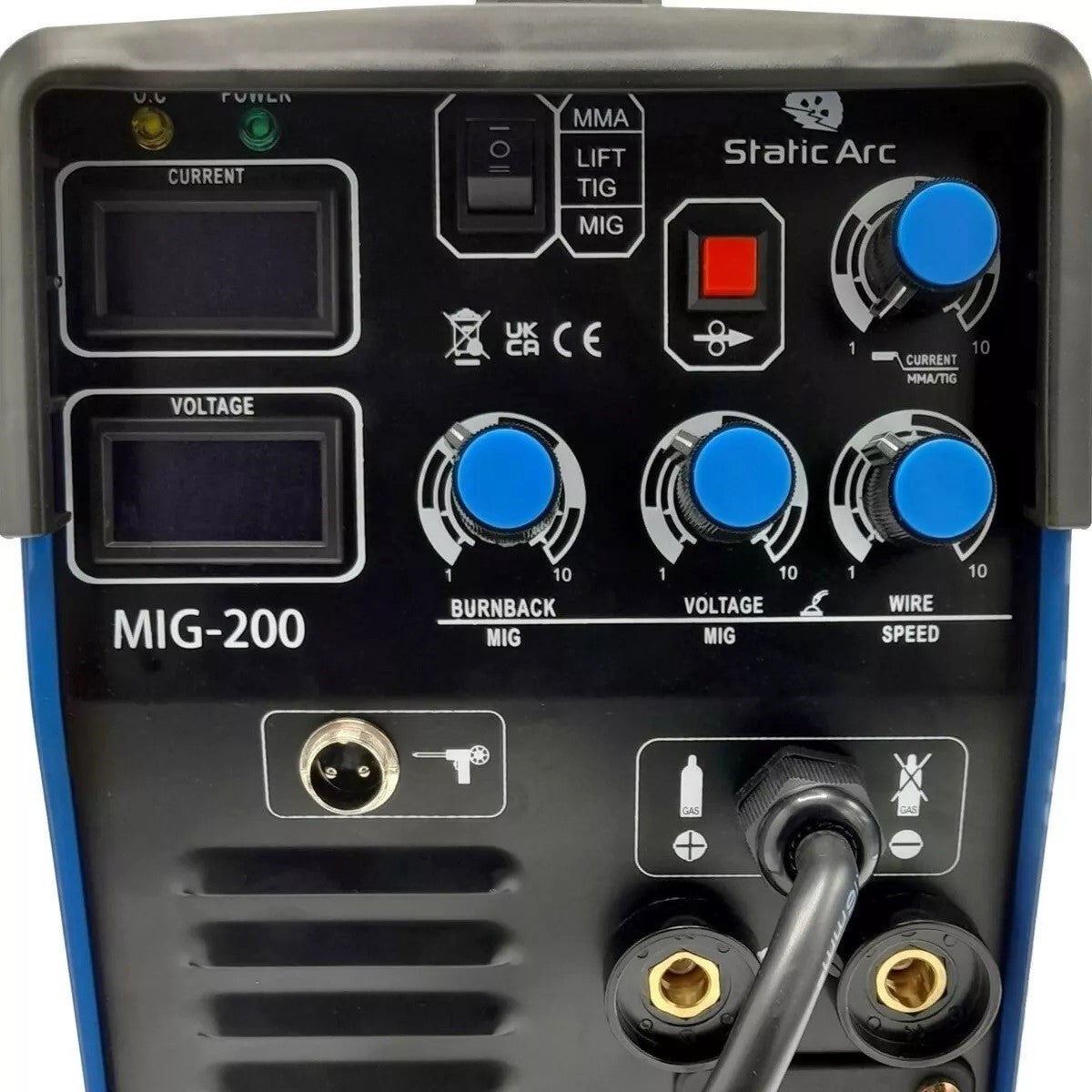

- Individual adjustment of power settings and wire feed speed

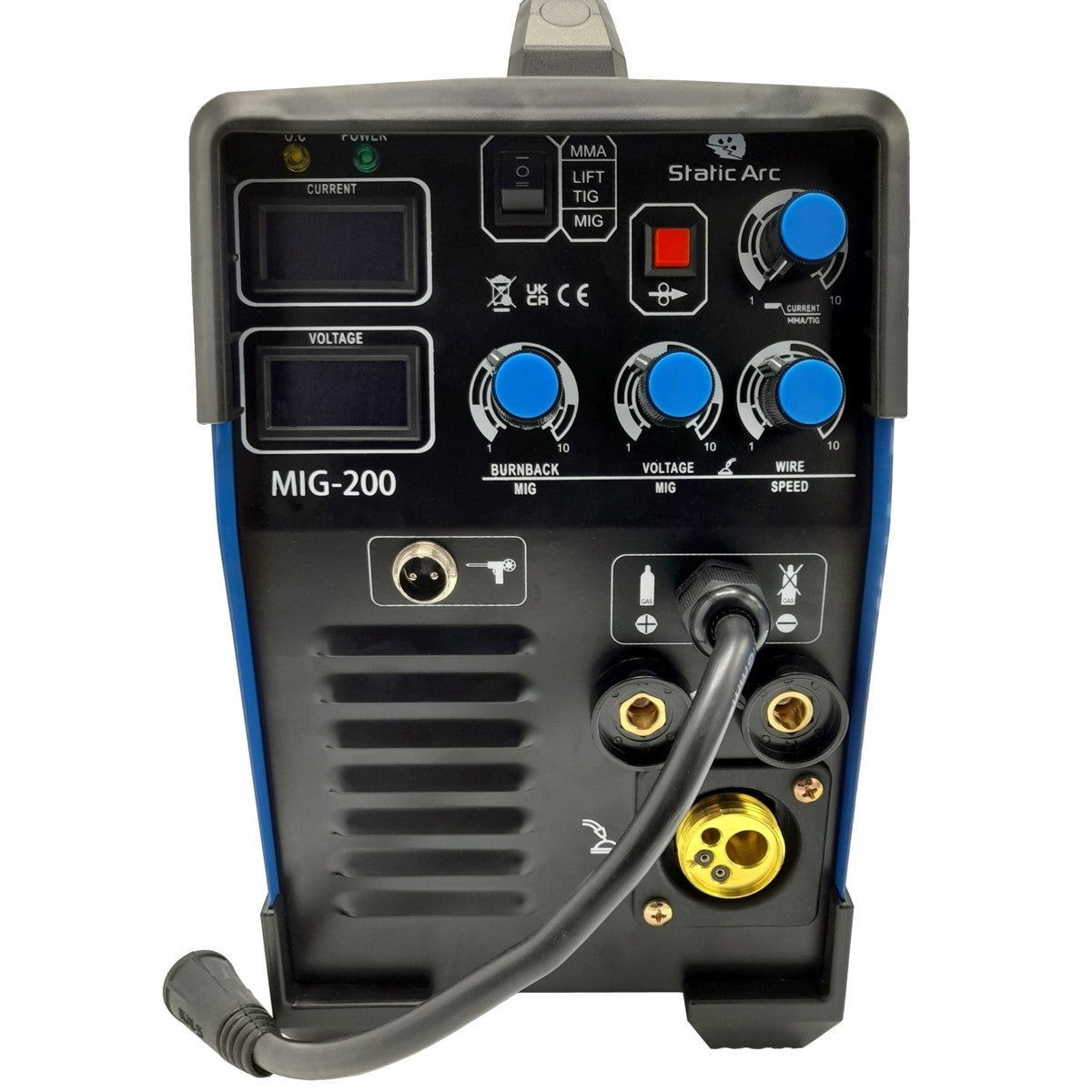

- Digital displays to read and set current/voltage
- Wire inching button for easy MIG wire setup
- Adjustable burnback to control wire stick-out after welding
- Spool gun socket (2 pin 24V) for operating a spool gun, ideal for MIG welding aluminium (We sell the spool gun, see link at bottom).
- Gas and gasless (flux core) dual MIG operation, ideal for welding outdoors
- Trigger operated Euro fit MIG torch (Non-live, press trigger to arc and feed wire)

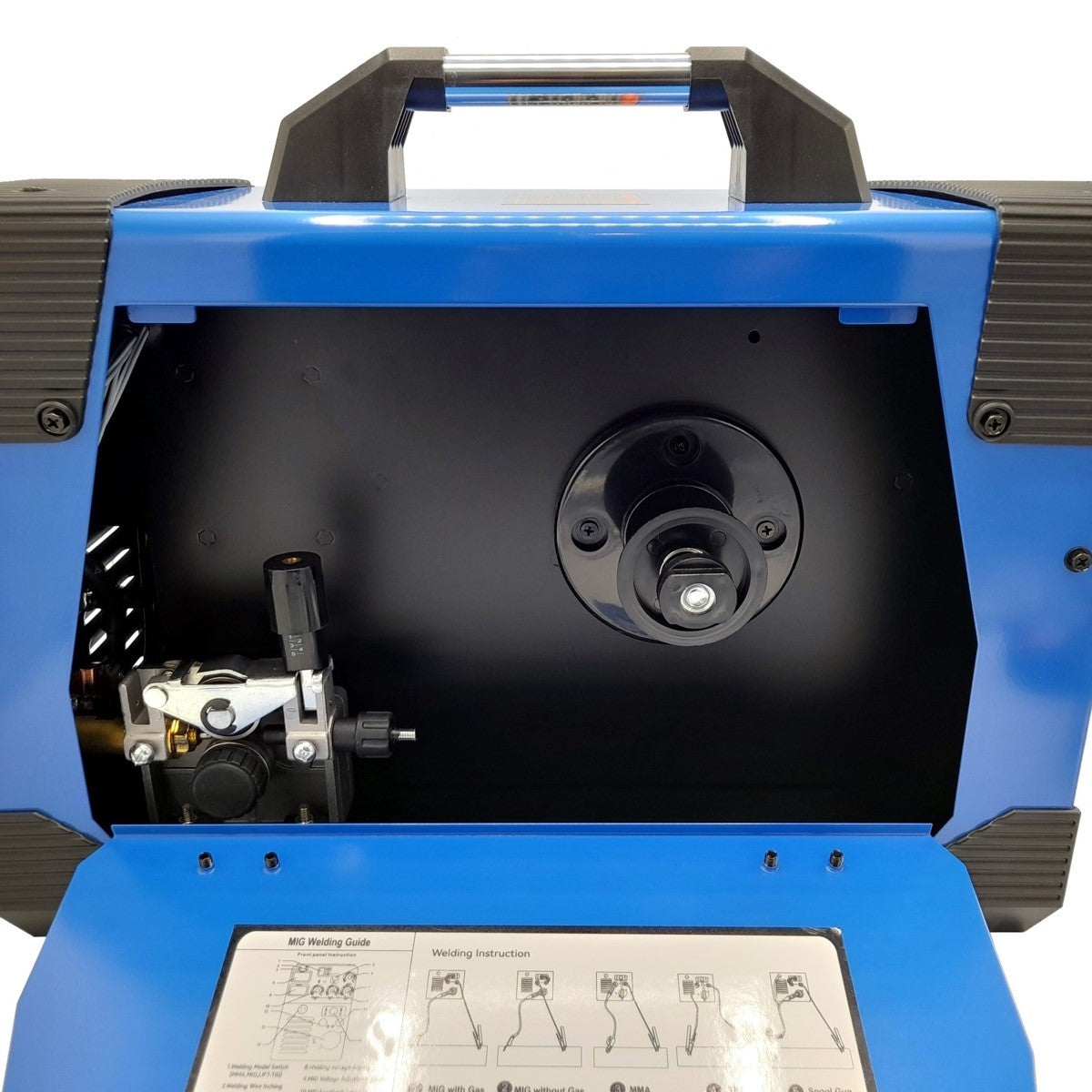

- Metal wire feed housing (more durable and reliable than cheaper plastic ones)
- Suitable for loading 5kg MIG wire reels, and below (1kg etc.)
- Hot start and anti-stick enabled MMA
- Auto protection from over-heat and over-current
- Lightweight (8.5kg) and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 3 pin mains plug
- 1 Year Warranty
SPECS

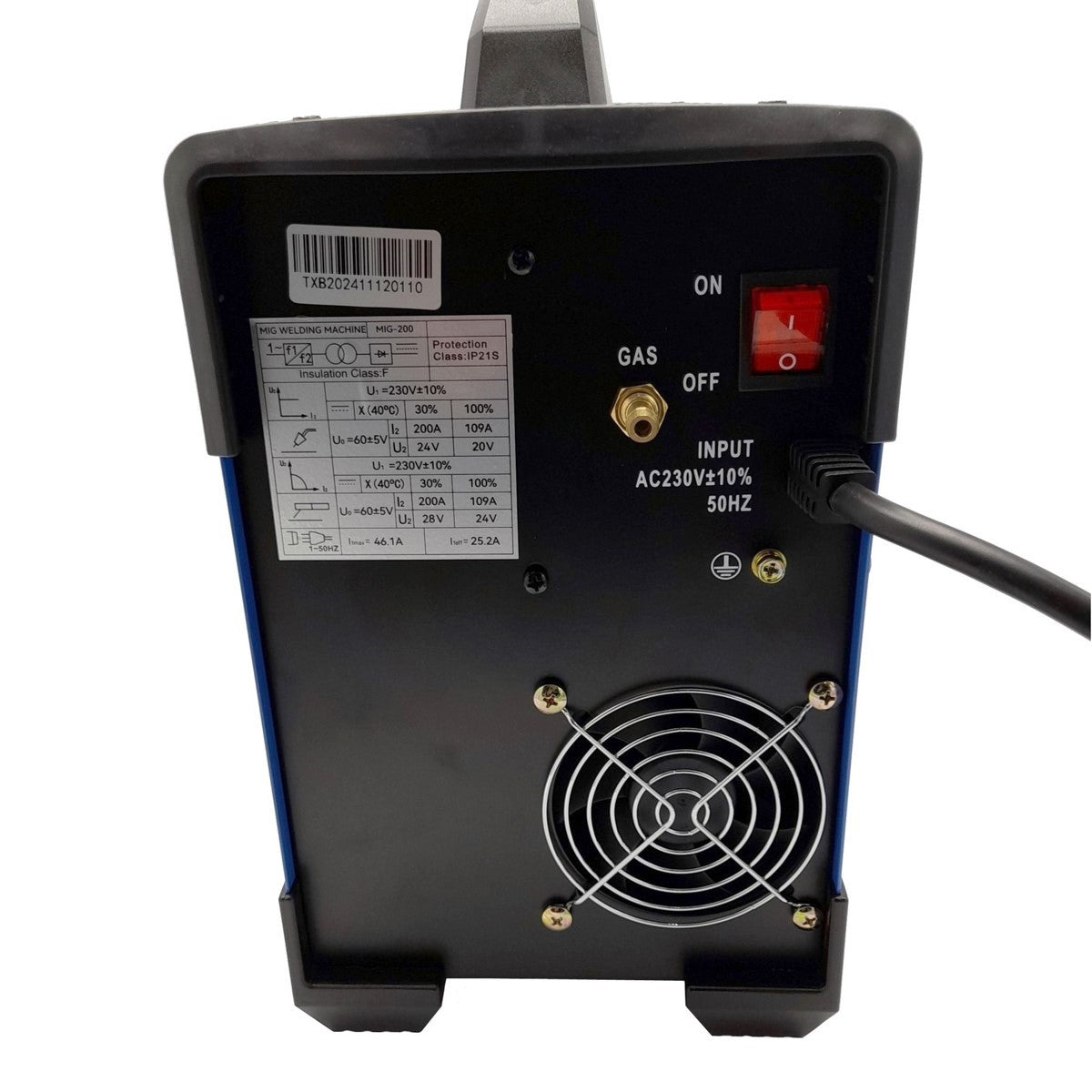

- Operating voltage: AC 230V, 50Hz
- Power rating: 3.5kW
- MIG/MMA/TIG output: 30-200A (15-24V)
- Duty cycle: 100% @110A, 30% @200A
- Suitable MIG wire size: 0.6-1.0mm (Fitted wire feed roller 0.6/0.8mm V 30mm - we sell other sizes in our store)
- Suitable MIG reel size: 5kg and below
- Suitable MMA electrode size: 1.6-4mm
- Weldable thickness: 6mm and below
- DKJ power plug size: 10-25
- Torch consumables: MB15
- Spool gun socket: 2-pin GX16 (DC24V)
- Gas inlet: 8mm hose tail to fit 8mm ID hose
- Standards: CE, UKCA, IP21S protection, F class insulation
- Machine weight: 8.5kg
- Machine size: 460 x 200 x 350mm

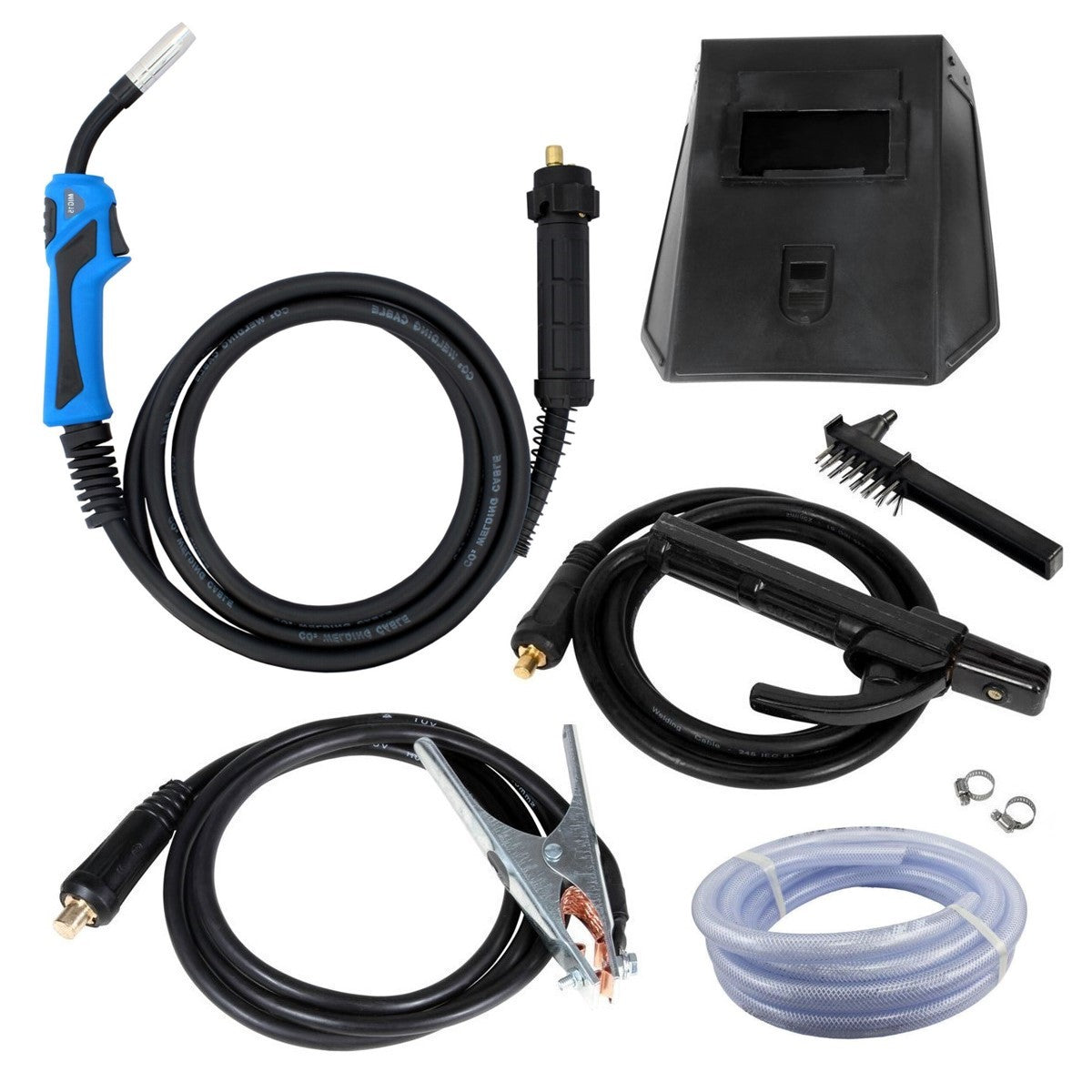

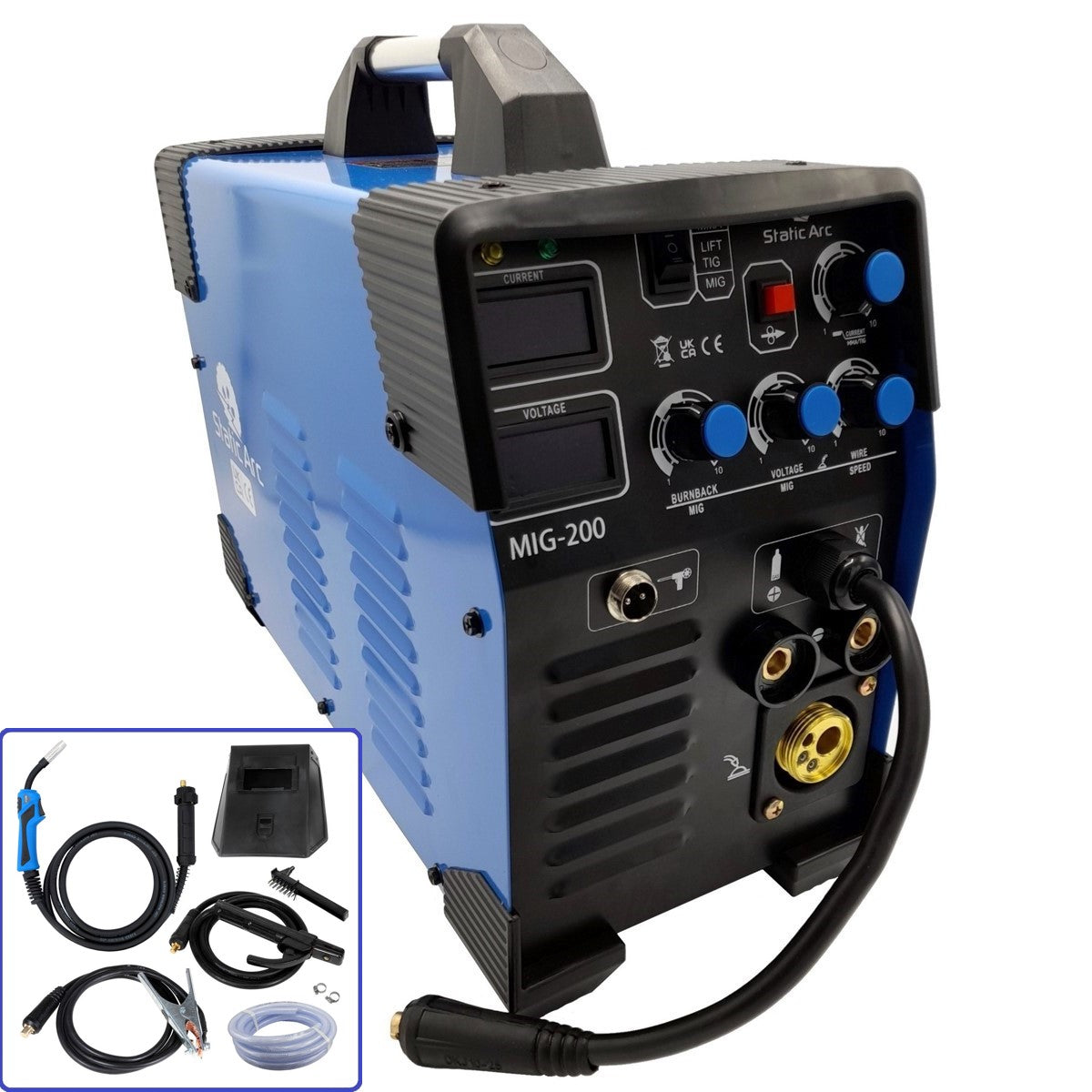

PACKAGE

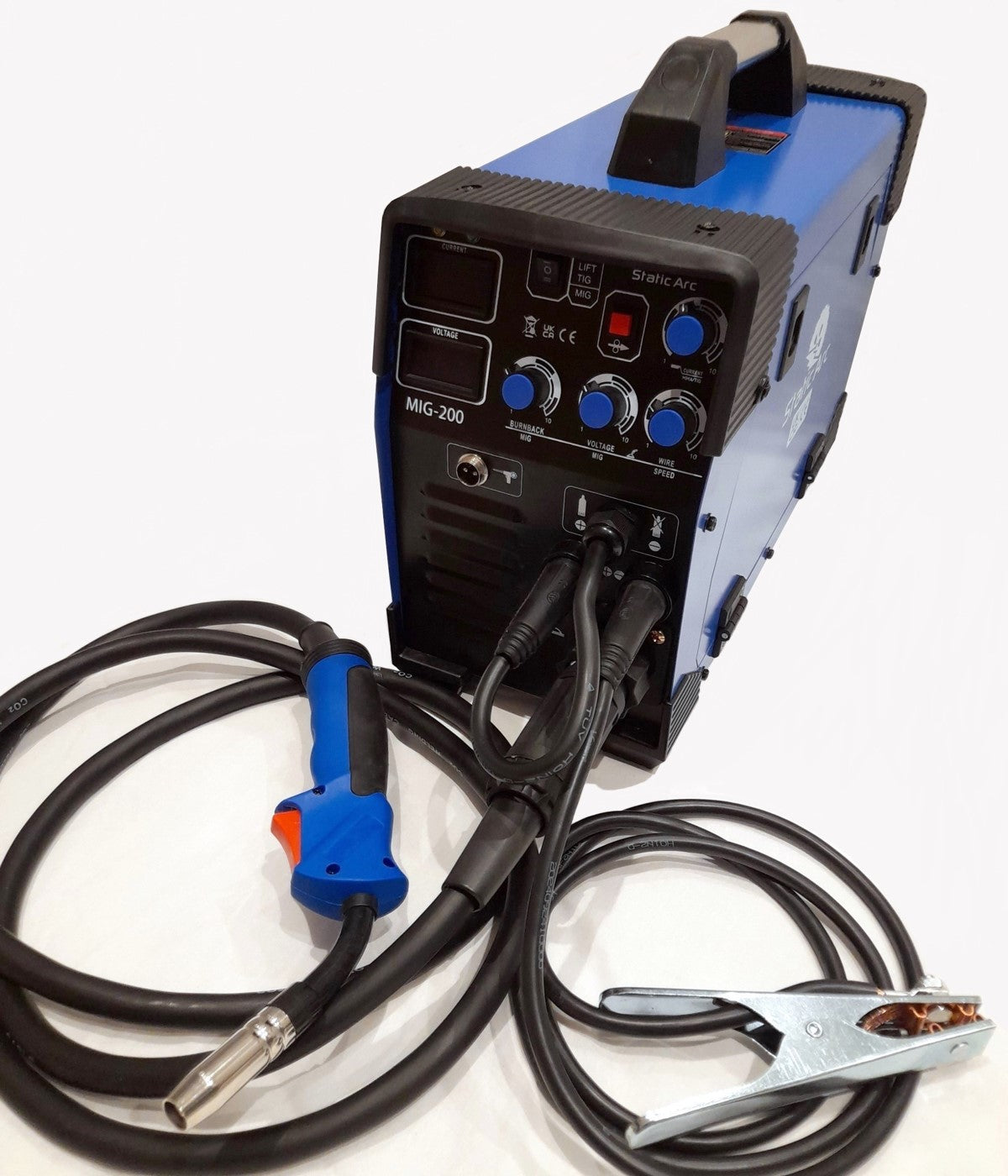

- MIG200 welder
- MIG welding torch, 3m
- MMA electrode holder, 2m
- Earth clamp, 2m
- Gas hose, 2m
- 2x Hose clips
- 4x Spare MIG tips
- Face mask
- Wire brush/hammer
- User manual
