FEATURES
- 3in1 multi-function MIG (gas and gasless), MMA and TIG lift operation
- Suitable for welding mild steel, stainless steel, cast iron and aluminium (MIG)
- Individual adjustment of power settings and wire feed speed

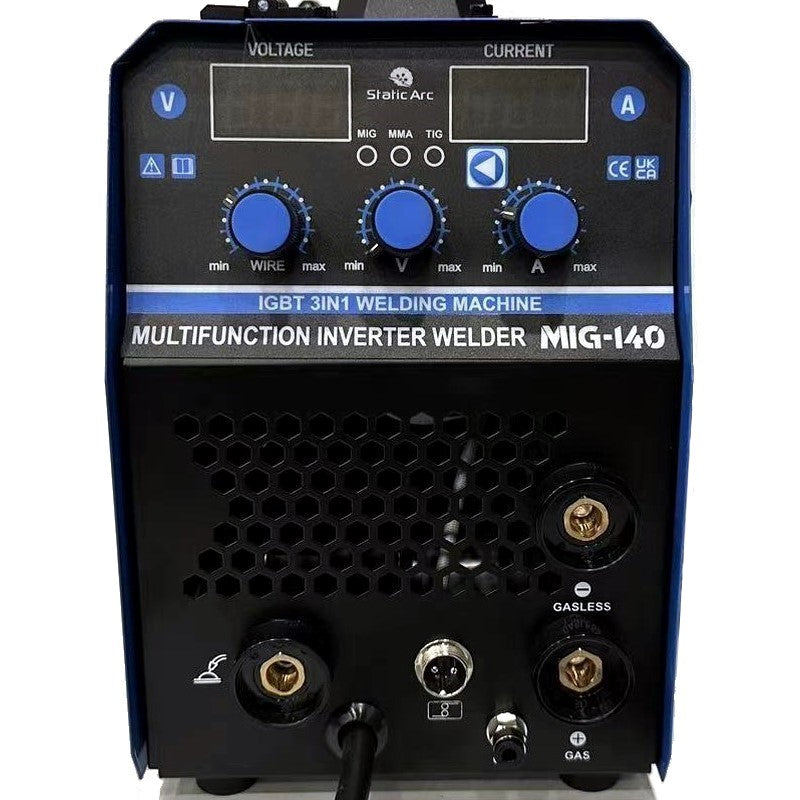

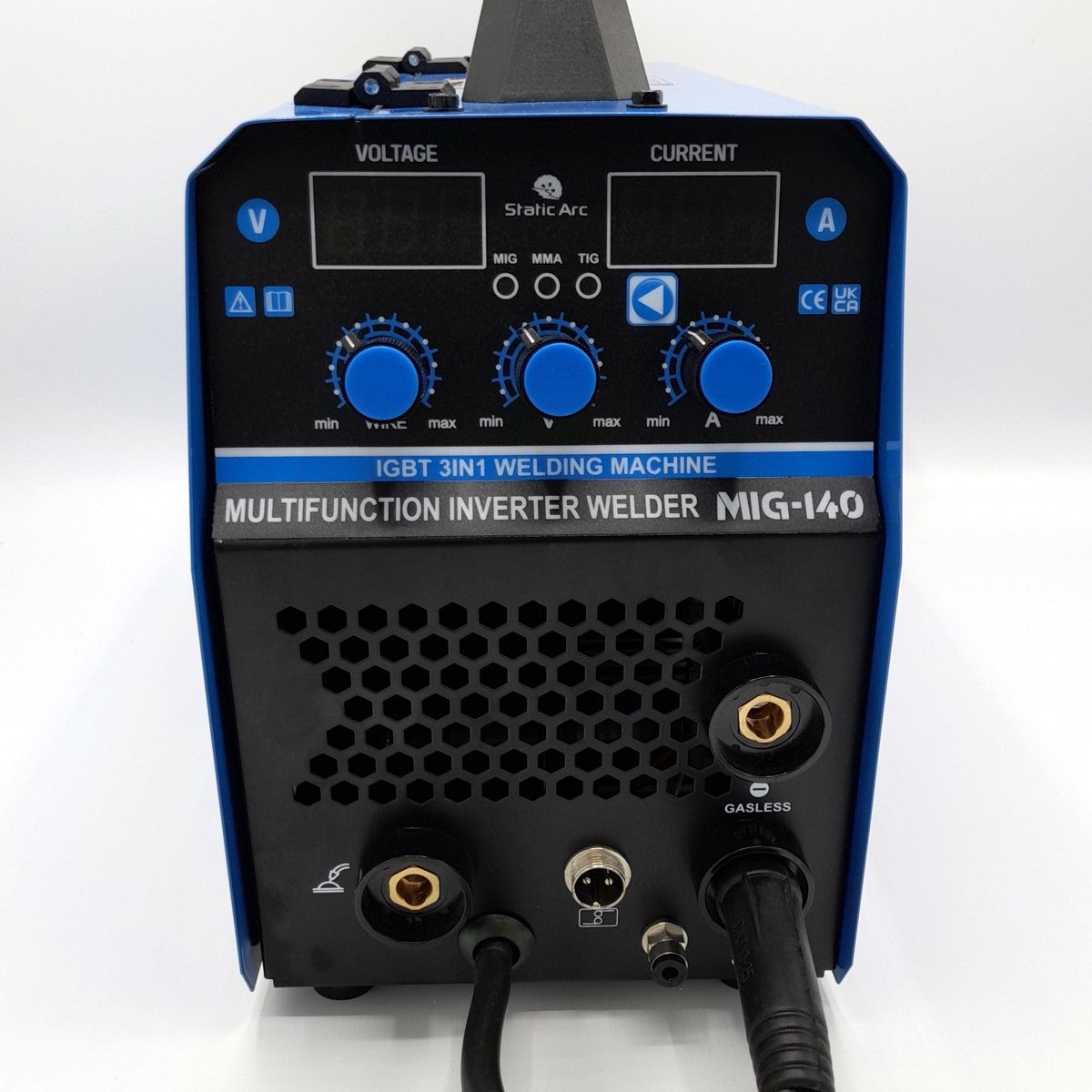

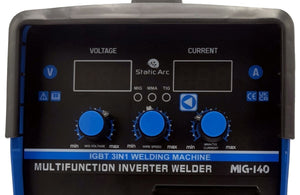

- Digital displays to read and set current/voltage
- Gas and gasless (flux core) dual MIG operation
- Removable Euro fit MIG torch (Trigger operated, Non-live)

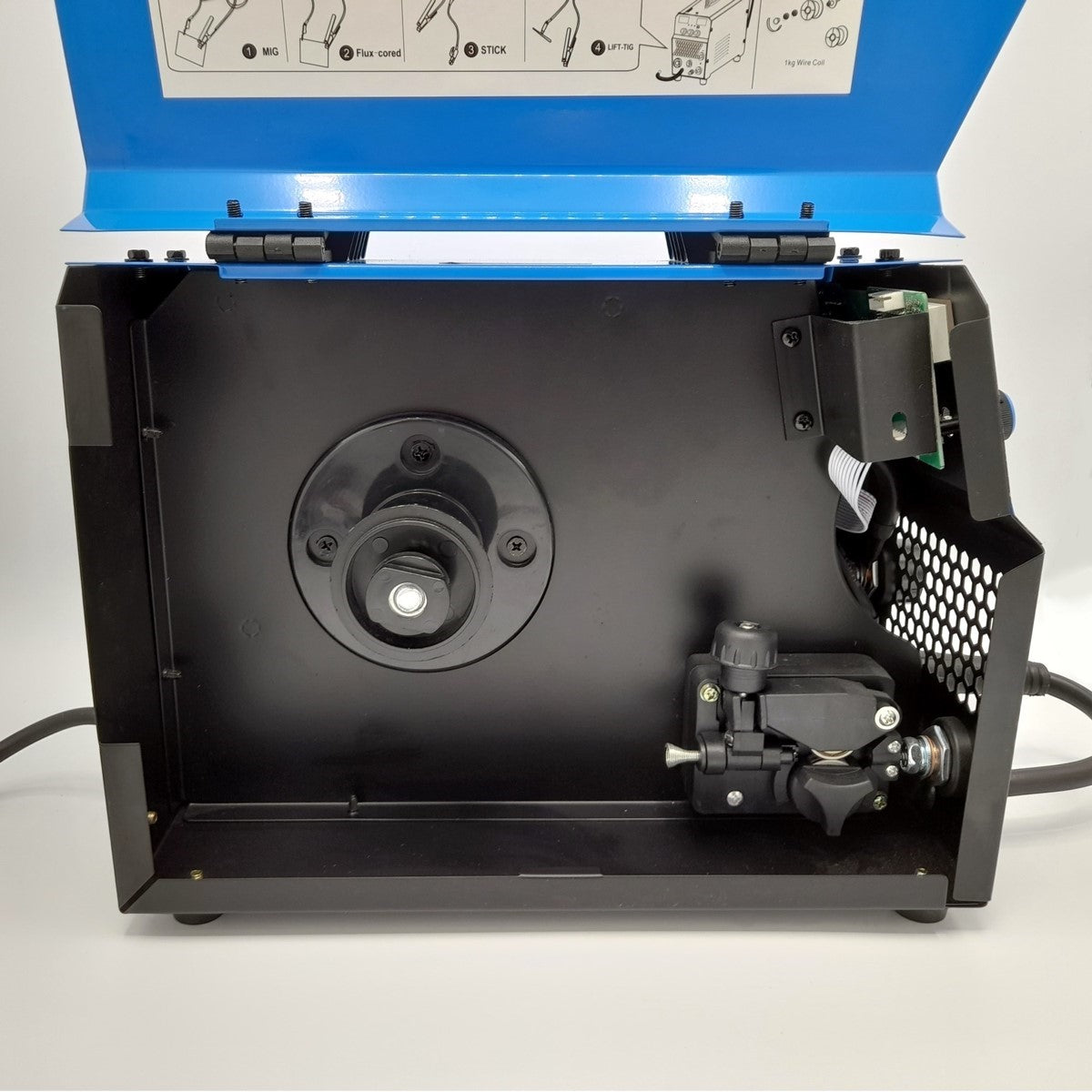

- Metal wire feed housing (more durable and reliable than cheaper plastic one)
- Suitable for loading up to 5kg MIG wire reel
- Hot start and anti-stick enabled MMA
- Auto protection from over-heat and over-current
- Lightweight (7kg) and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 13A mains plug
- 1 Year Warranty
SPECS

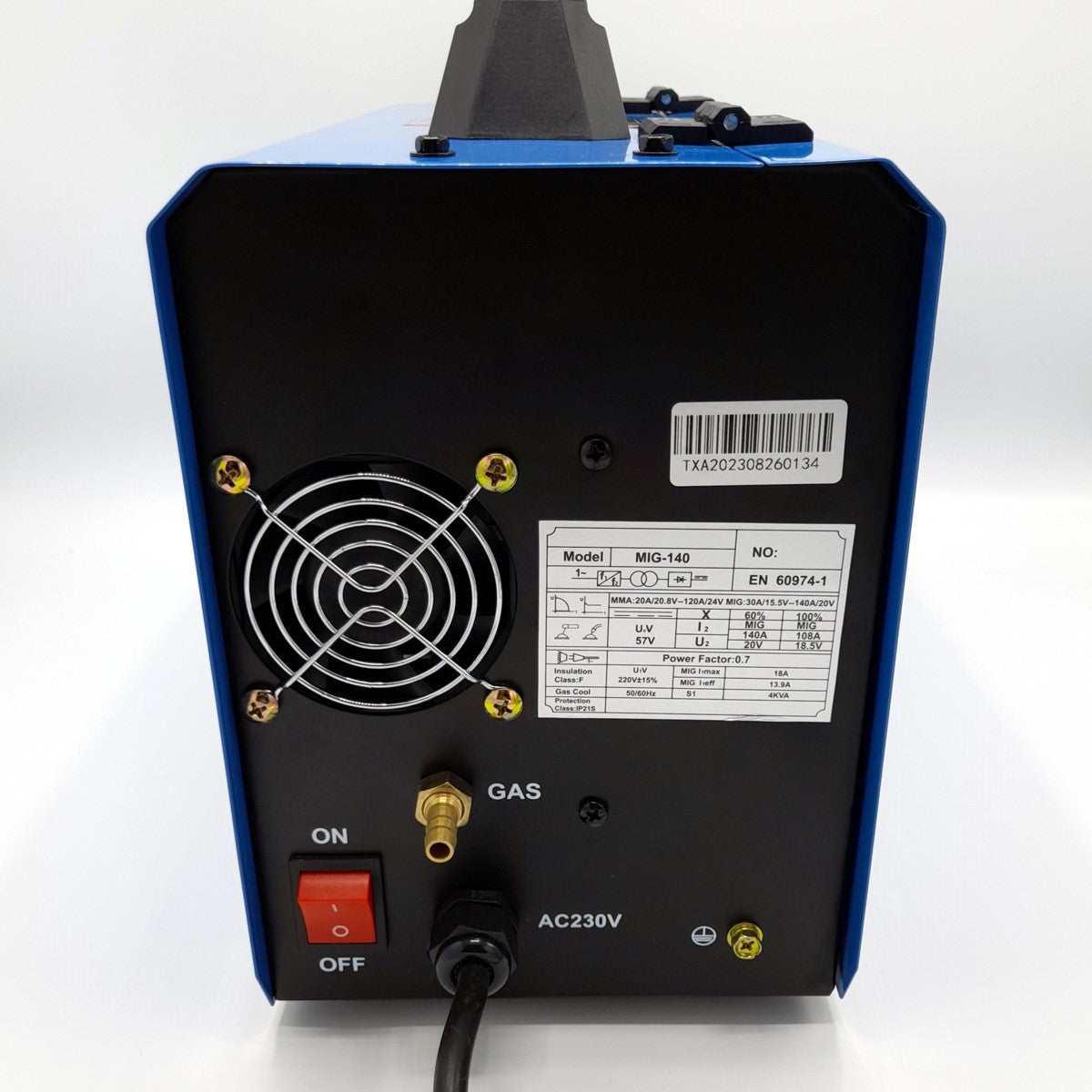

- Operating voltage: AC 230V, 50Hz
- Power rating: 3kW
- MIG output: 15-22V (30-140A)
- MMA output: 30-140A
- TIG output: 20-140A
- Duty cycle: 100% @ 110A, 60% @ 140A
- Suitable MIG wire size: 0.6-1.0mm (Fitted guide wheel 0.6/0.8mm knurled 30mm - we sell other sizes in our store)
- Suitable MIG reel size: Up to 5kg (Will fit smaller 1kg reels)
- Suitable MMA electrode size: 1.6-3.2mm
- Weld thickness: Up to 4mm
- Dinse plug size: 10-25
- Torch consumables: MB15
- Gas inlet: 8mm barb to fit 8mm ID hose
- Standards: CE, UKCA, IP21S protection, F class insulation
- Machine weight: 7kg
- Machine size: 420 x 200 x 340mm

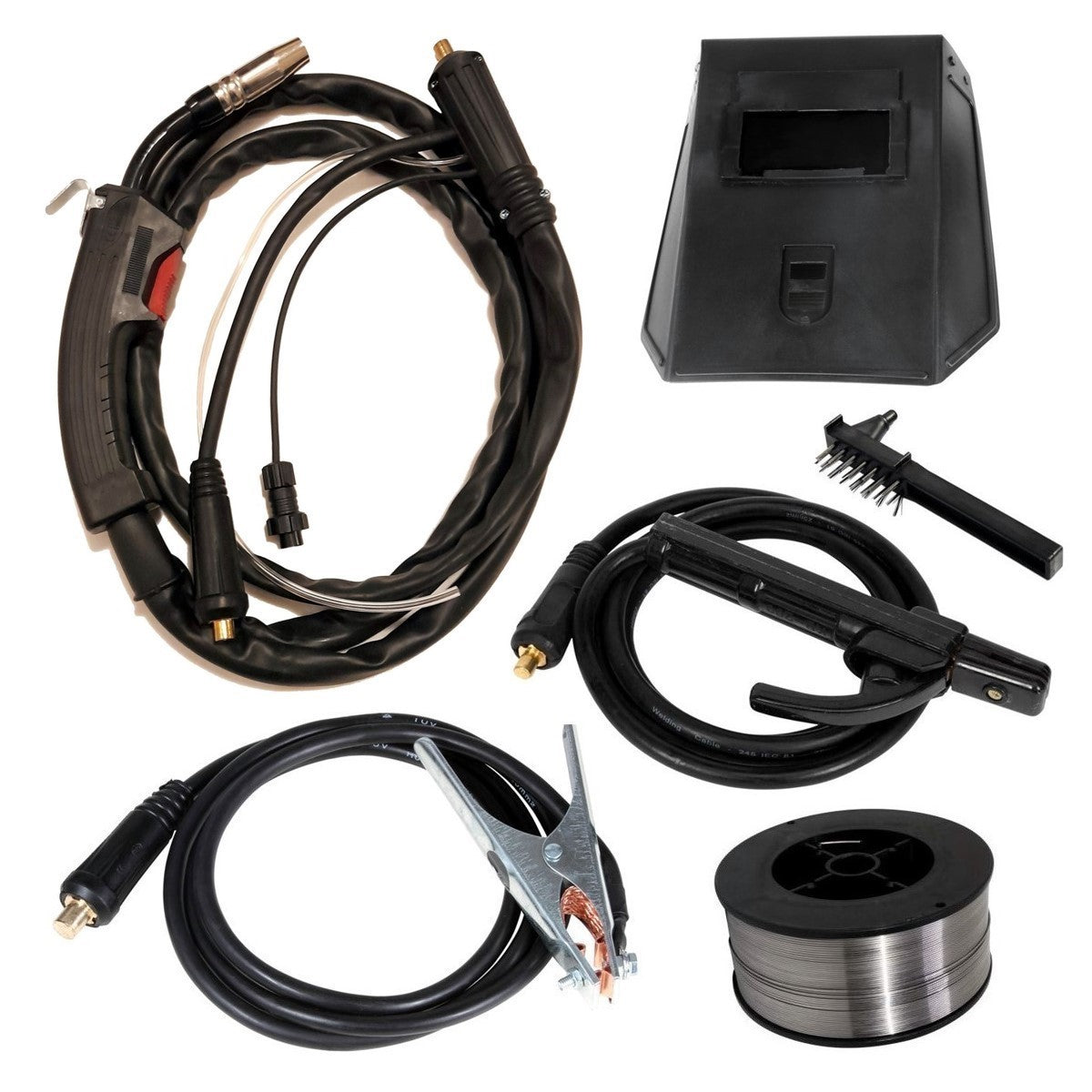

PACKAGE

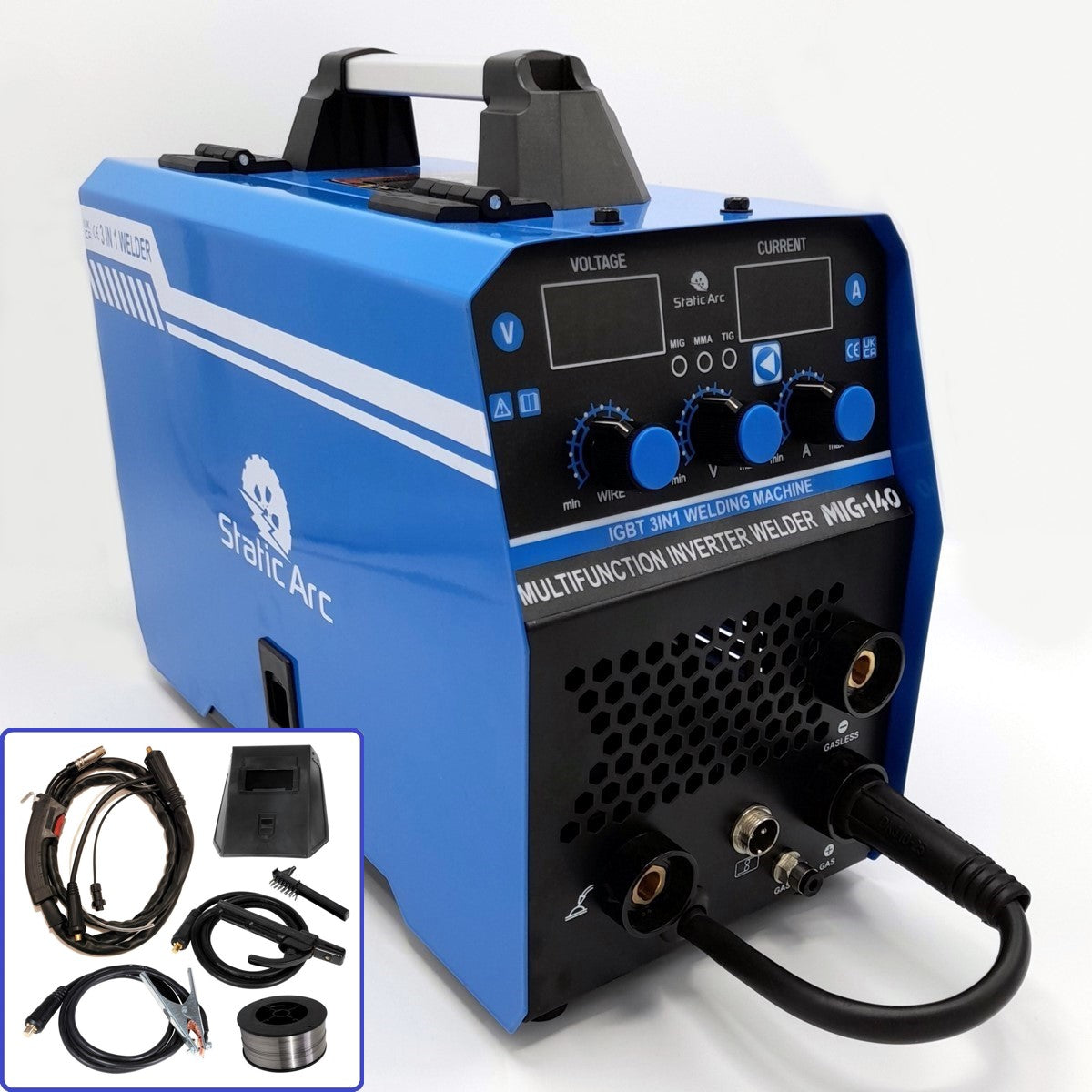

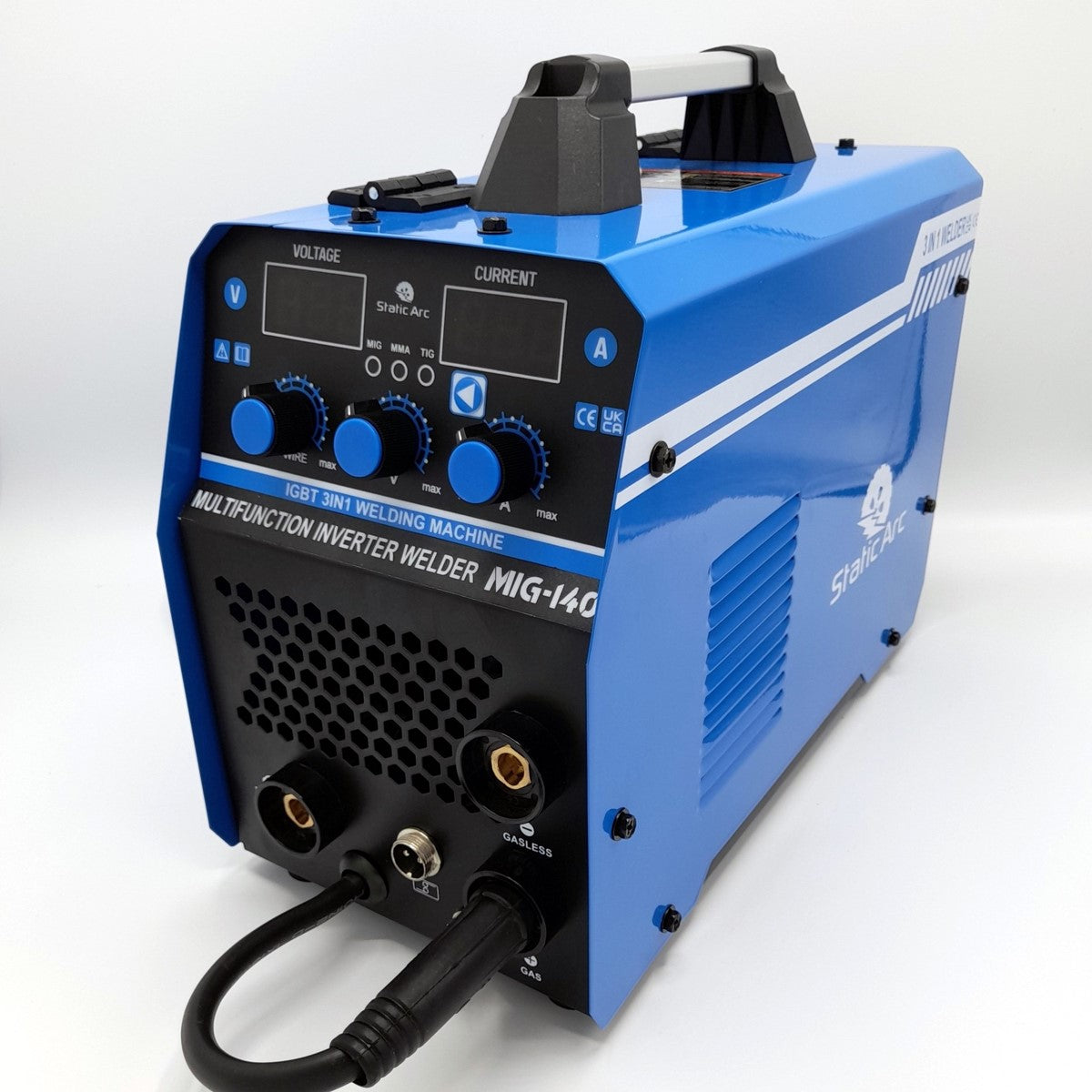

- MIG140 welder
- MIG welding torch, 3m
- MMA electrode holder, 2m
- Earth clamp, 2m
- 0.8mm flux core wire reel, 0.5kg
- Gas hose, 2m
- 2x Hose clips
- 4x Spare MIG tips
- Face mask
- Wire brush/hammer
- User manual
NOTE: TIG TORCH NOT INCLUDED BUT WE SELL IN OUR STORE, SEARCH MODEL WP17FV
